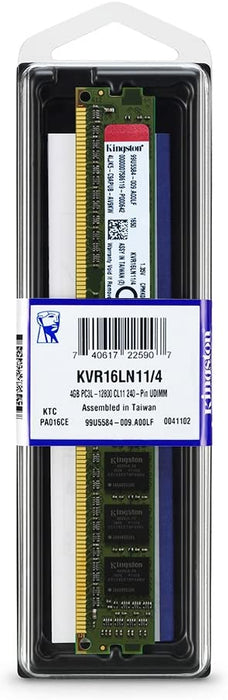

Kingston KVR16LN11/4 4GB 1600MHz DDR3L CL11 1.35V

KVR16LN11/4 Kingston 4GB 1600MHz DDR3L CL11 1.35V

This document describes ValueRAM's 512M x 64-bit (4GB)        DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low        voltage, memory module, based on eight 512M x 8-bit FBGA        components. The SPD is programmed to JEDEC standard        latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This        240-pin DIMM uses gold contact fingers. The electrical and        mechanical specifications are as follows:



FEATURES


• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~        1.575V) Power Supply


• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)


• 800MHz fCK for 1600Mb/sec/pin


• 8 independent internal bank


• Programmable CAS Latency: 11, 10, 9, 8, 7, 6


• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock


• 8-bit pre-fetch


• Burst Length: 8 (Interleave without any limit, sequential with        starting address 000 only), 4 with tCCD = 4 which does not        allow seamless read or write [either on the fly using A12 or        MRS]

• Bi-directional Differential Data Strobe


• Internal(self) calibration : Internal self calibration through ZQ        pin (RZQ : 240 ohm ± 1%)


• On Die Termination using ODT pin


• Average Refresh Period 7.8us at lower than TCASE 85°C,        3.9us at 85°C < TCASE < 95°C


• Asynchronous Reset


• PCB Height:        0.740 (18.75mm) or 1.180 (30.00mm), single sided        component
